mjuart

Products

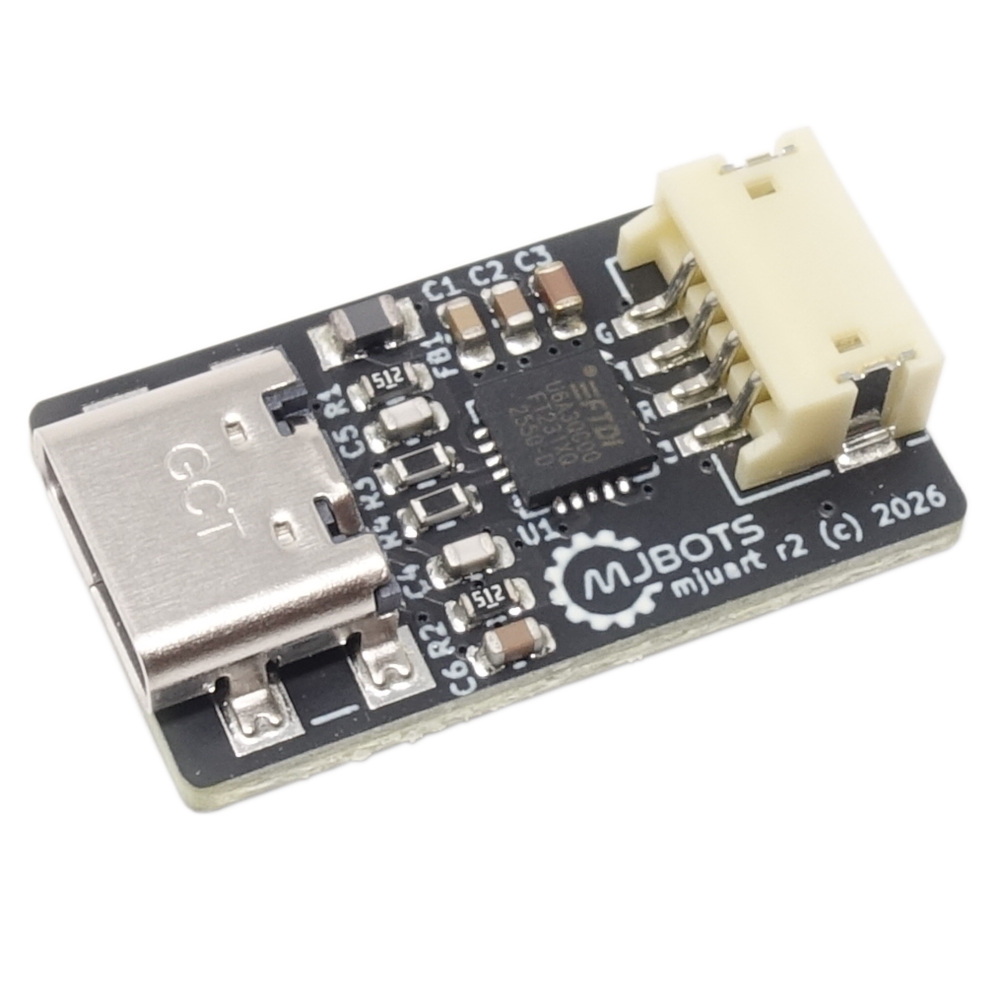

Here’s a small new addition to the mjbots product portfolio, the mjuart - a FT231X breakout board, now available at mjbots.com.

This USB to 3.3V level UART adapter includes appropriate cables to connect to all of the possible auxiliary ports on each moteus controller:

  • moteus-r4 ABS: A ZH4 to ZH4 cable with RX/TX swapped
  • aux1: A ZH4 to GH8 cable
  • aux2: A ZH4 to GH7 cable

The FT231X can communicate without problems at up to 3 Mbps, which lets you capture high rate debug information from a moteus controller. It also works just fine with the yet-to-be-announced UART based control at its default baud rate of 921600 (or up to 3Mbps if you like living on the edge).

Other things of note:

  • The host connection is USB-C. No USB cable is included.
  • The bottom side has 0.1" SMT pads for the UART signals and also for 3 controllable GPIOs from the FTDI chip.

Good luck building!
