As described in my roadmap, the chassis for the quad A0 was on the verge of failing, or causing the shoulder motors themselves to fail, after only a few hours of walking around.  Also, it was nigh impossible to assemble, disassemble, or change anything about it.  Thus, the chassis v2!

More than one piece

The old chassis was a single monolithic print that took about 35 hours of print time.  Because of its monolithic nature, there were lots of interference problems during assembly.  For instance, the shoulder motors could only have 4 of the 6 possible bolts installed, and 2 more of the bolts extended beyond the chassis entirely.  I decided to break it up into multiple pieces, which uses a lot more inserts and bolts, but should allow for a feasible order of assembly and manageable repair.

A previous simulator I had built for Super Mega Microbot was based on the “DART” robotics toolkit.  It is a C++ library with python bindings that includes kinematics, dynamics, and graphical rendering capabilities under a BSD license.  I wanted to use some of its dynamics capabilities for future gait work on the quad A0, and eventually re-incorporate its simulation capabilities, so integrated a subset of it into mjbots/bazel_deps.

• github: Incorporate a subset of dart and its dependencies

My last video gave an overview of what I’ve accomplished over the past year.  Now, let me talk about what I’m planning to work on going forward:

I intend to divide my efforts into two parallel tracks.  The first is to demonstrate increased capabilities and continue learning with the existing quad A0, and second is to design and manufacture the next revision of all its major components.

New capabilities and learning

The first, and most important capability I want to develop is an improved gait and locomotion system.  While the moteus servos in the quad A0 are capable of high rate compliant control, the gait engine that I’m using now is still basically the same one that I made for the HerkuleX servos 5 years ago.  It just commands open loop positions to each of the servos and uses no feedback from the platform at all.  This severely limits what the robot can do.  For instance, if the terrain is not level, legs will drag on the ground or it will not walk at all.  The maximum speed is relatively slow and achieving it requires careful tuning of servo-level gains.  While it is more robust than nearly any other open loop 4 legged walker while standing up, even small disturbances can cause it to fall over.

While I’ve been working to some degree on quadrupedal robots for the last 5 years, it has been just about 1 year since I kicked up my effort a notch, with my post about improved actuators for SMMB.  I figured it was a good time now to produce a video summarizing what I’ve gotten done over the last year:

Concurrently, I’ve posted a “state of the project” text update on hackaday.io, just to get a wider readership.  If you’ve been reading here all along, there won’t be anything terribly new there, but it is a decent summary of where I stand.

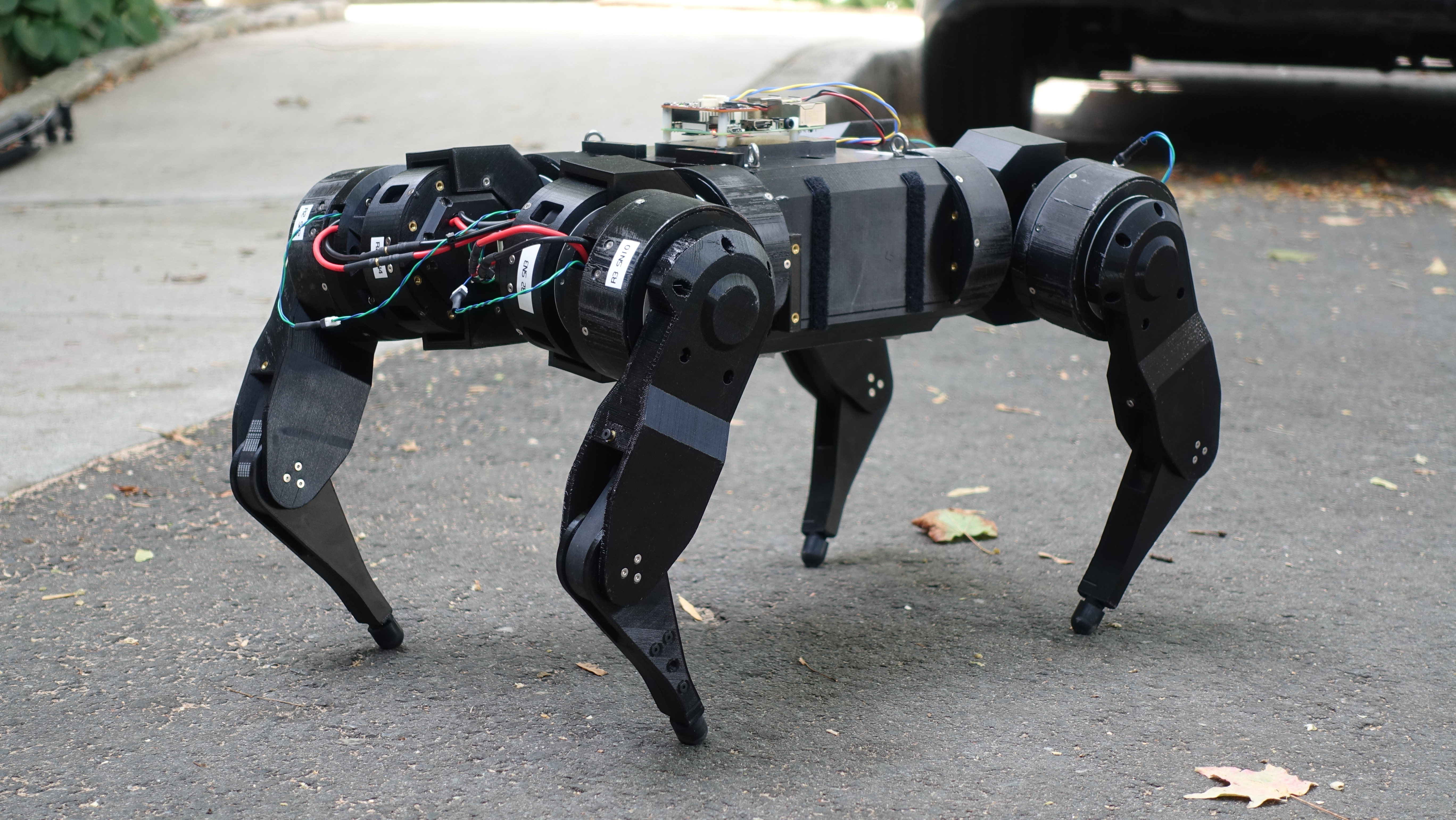

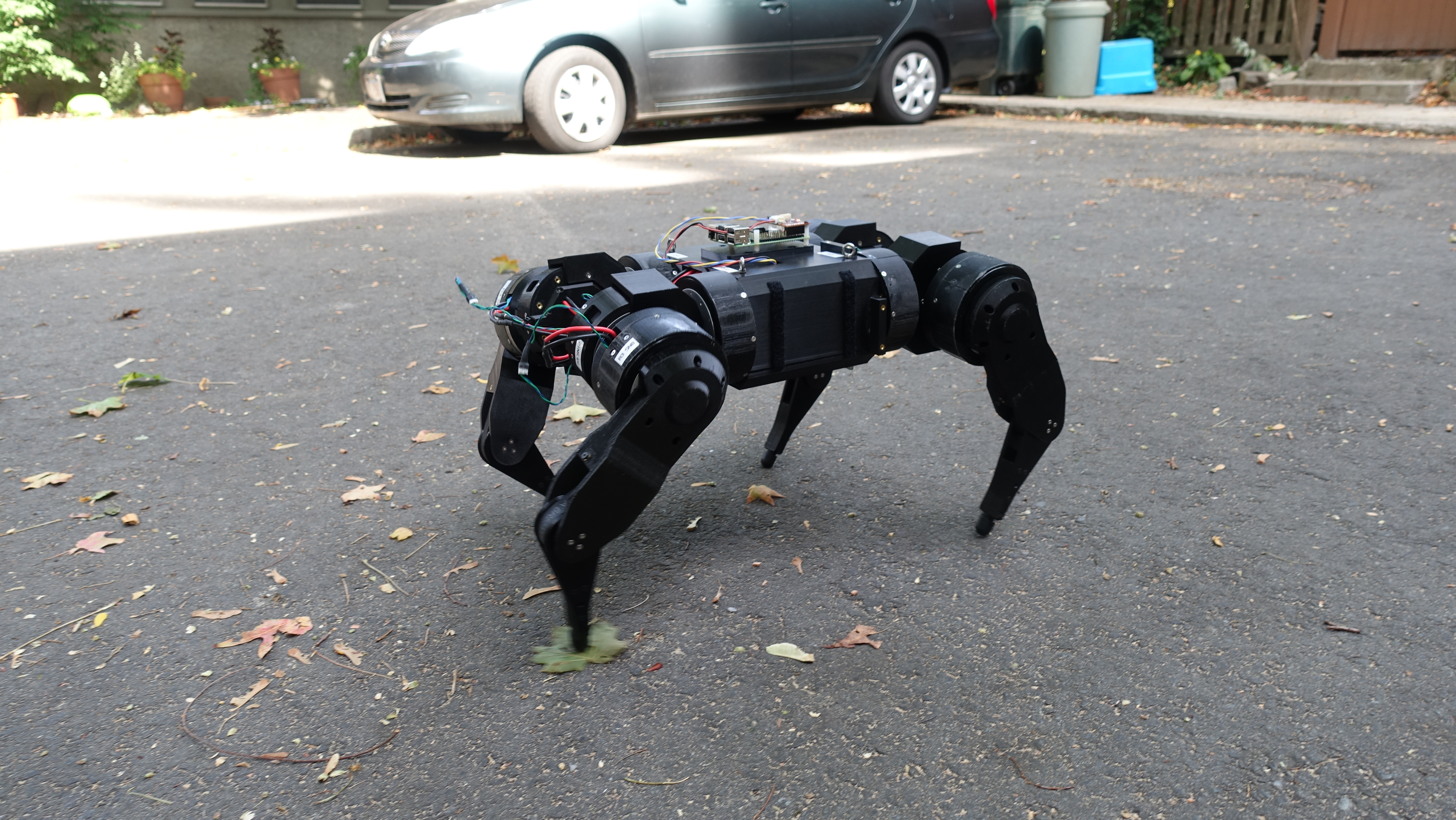

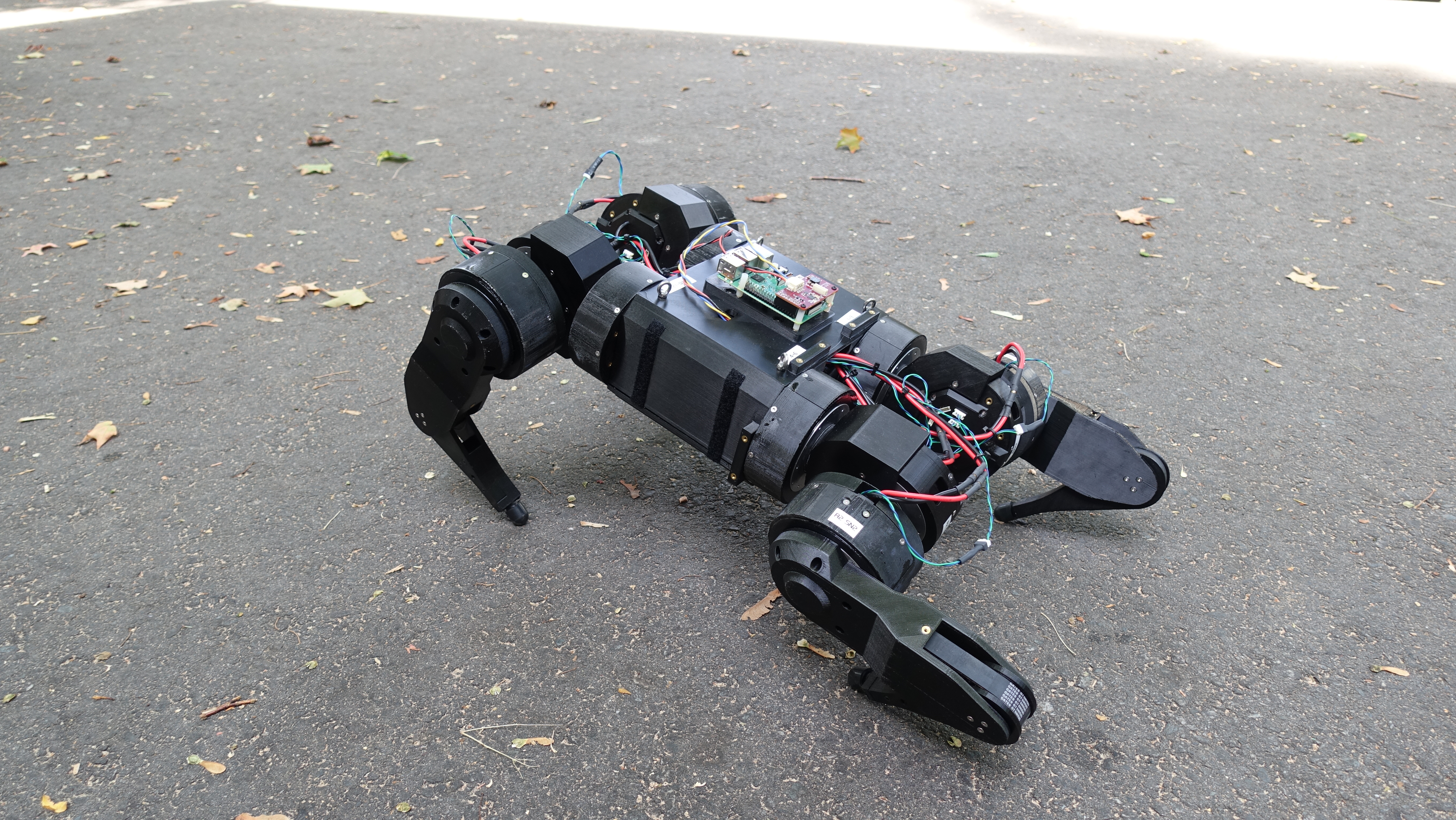

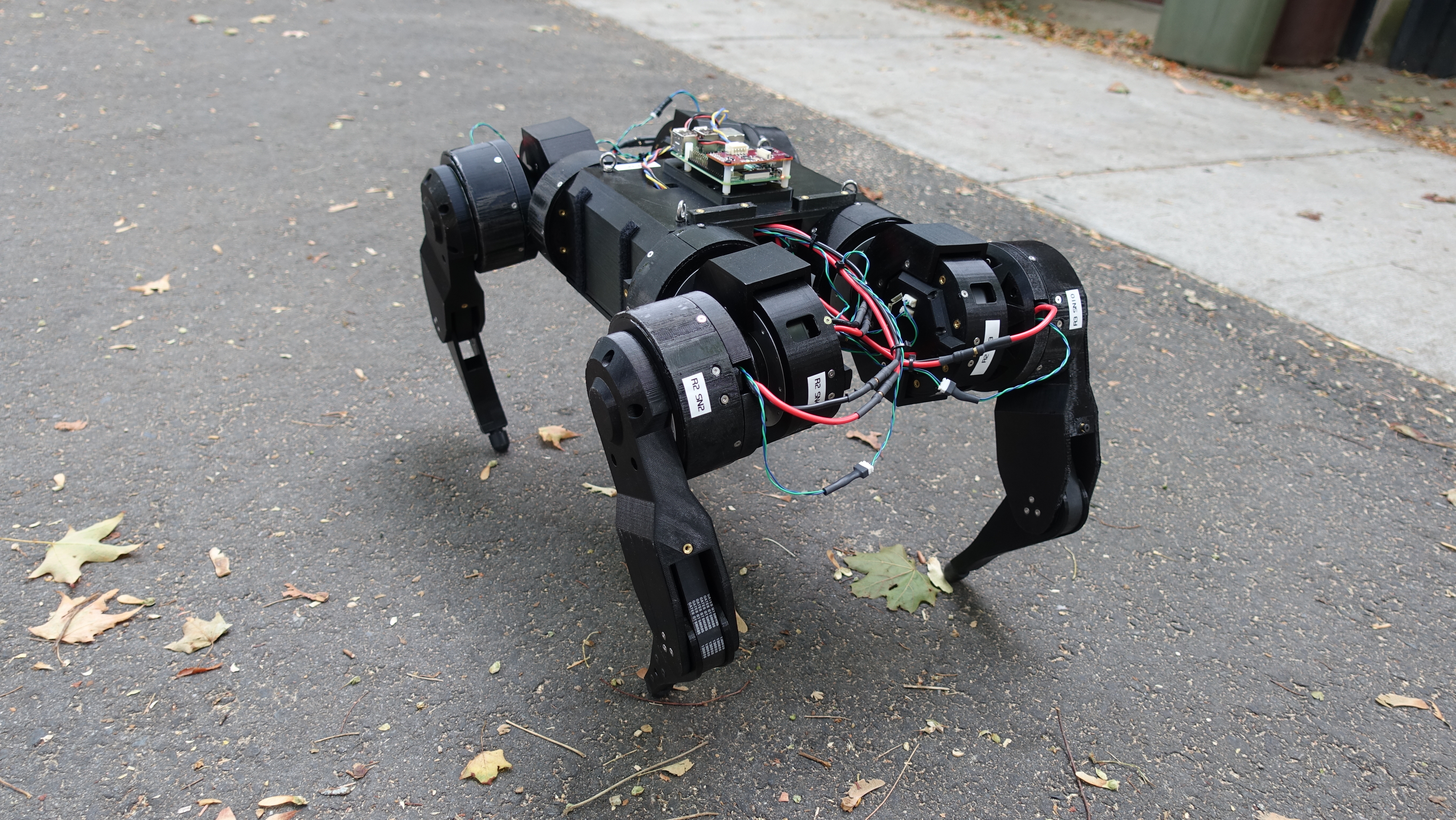

While preparing a soon to be released video, I ran the quadruped robot outside and took a few glamour shots.

Back when I was getting Super Mega Microbot “Junior” ready for Maker Fair Bay Area 2019, I made it minimally self sufficient through a quick hack of adding some PVC pipe that allowed it to manipulate its feet into a known good position while the robot was safely up in the air.

This worked, but had a number of obvious disadvantages.  For one, it looked ugly!  Second, the machine couldn’t squat down very far before getting stranded on the “resting legs”.  I’ve finally gotten around to doing at least a first attempt at something better!

In part 1, part 2, and part 3, I looked at what was limiting the update rate of the moteus controller when built into a quadruped configuration and how to improve that.  Now, it is time for the final demonstration!

That video was shot with a 150Hz overall update rate.  The plot shows the commanded and actual position of the three joints in the front right leg, although not all to the same vertical scale.  Updating the servos themselves only used about 3.5ms per cycle, but the gait logic used another 1-1.5ms, which made hitting 200Hz not super reliable, thus running at 150Hz.

To demonstrate the dynamic capability of the full rotation quadruped, I figured I would start by doing some full machine jump tests to a relatively low height, just to show that it was capable.

Thus, I rigged up an open loop script which squatted a small fraction of the available distance, and then powered up at a relatively small fraction of the available maximum speed.  I don’t have the telemetry yet to extrapolate how high this will be able to go at maximum, but I think it should be a fair amount higher.  For now, I want to do some more instrumentation and walking testing (and have more spares) before I manage to break things by jumping really high.

Last time, I had finished physically assembling all the motors for the updated quadruped with legs that can rotate freely 360 degrees.  After the long summer break, I powered up and configured all the servos.  Then, after setting up the gait engine for the new configuration (for which there are still a TODOs when the lateral shoulder offset is non-trivial as in this configuration), I was able to achieve some amount of walking.  Here is one of the first videos I took, without much in the way of tuning or work.  The control is a little wobbly still, but so far there are no signs of any mechanical failures as with the older design.

The next step in (re-)building the quadruped with a full rotation leg was getting all the motors ready.  I had to first install reinforcing rings on 6 of the motors:

Then, I needed to lengthen the power leads on 3 of the motors to serve as the lower leg joint.
